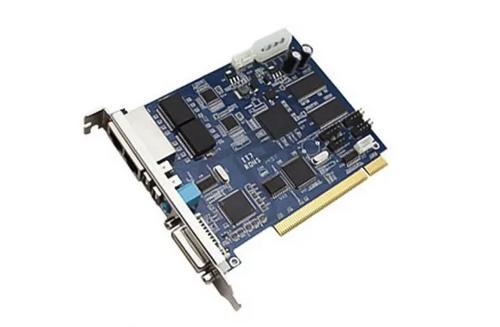

Colorlight S2 LED Display Sender Card Instead Colorlight IT7 LED Controller Card
Colorlight S2 LED Display Sender Card Instead Colorlight IT7 LED Controller Card
  • Görseli Galeri görüntüleyiciye yükleyin, Colorlight S2 LED Display Sender Card Instead Colorlight IT7 LED Controller Card
  • Görseli Galeri görüntüleyiciye yükleyin, Colorlight S2 LED Display Sender Card Instead Colorlight IT7 LED Controller Card

Colorlight S2 LED Display Sender Card Instead Colorlight IT7 LED Controller Card

Colorlight
$105.00 USD
$105.00 USD
$155.00 USD
Tükenmiş
Kargo, ödeme sayfasında hesaplanır.

Colorlight S2 LED Display Sender Card Features:

1) Support DVI signal input
2) Support audio input, synchronous transmission through the network cable
3) Maximum input resolution: 1920*1200 pixels.
4) Loading capacity: 1.31 million pixels. Max in Width: 2560 pixels, Max in Height: 2560 pixels.
5) 2 Gigabit Ethernet port outputs support screen arbitrary splicing
6) Dual USB ports for high speed configuration and easy cascading
7)Improved grayscale performance at low brightness
8) Equip with 1X PCI-E interface, more versatile
9) Wide working voltage with DC 3.8~12V
10) Compatible with all series of Colorlight receiving cards

Colorlight S2 LED Display Sender Card Parameter:

Video source interfaces

Type

DVI

Receiving Resolution

1920*1080 in max

Frame Rate

Standard 60Hz, and auto adjustment
Gigabit Ethernet Outputs

Quantity

2 ports

Net Port Control Area

Each net port is 1280*512 pixels (or equivalent area). 2 net ports are 1280*1024 pixels (or equivalent area)

Single card max width up to 2560 pixels, and 2560 pixels in height

Transmission distance

CAT5≤140M；CAT6≤170M；Optical fiber: No limitation

Splicing

Arbitrary

Transmission Mode

Frame mode (Gigabit Ethernet) with CRC
Connecting Device

Receiving card

All series

Peripheral Device

Multifunction cards, fiber optic transceivers, Gigabit switches
Parameters

Size

140*105 mm

Input Voltage

DC 3.8V-12V

Power Consumption

6W

Weight

100g
External Interface

Configuration Port

USB

Real-time Configuration

Support

Brightness and Chromaticity Adjustment

support

Smart Detection System

DVI interface

Real-time Clock

Support
More Functions

Multi Screen Control

Multiple screens with different sizes can be controlled at one time

Background Playing

Support (Extended mode)

Audio Transmission

Support

BER Detection

Net cable quality and malfunction detection
