Huidu HD-R716 R716 Synchronous control system and asynchronous control system LED receiving card

Huidu HD-R716 R716 Synchronous control system and asynchronous control system LED receiving card

Huidu
$12.00 USD
$12.00 USD
$58.00 USD
Продано
Стоимость доставки рассчитывается при оформлении заказа.

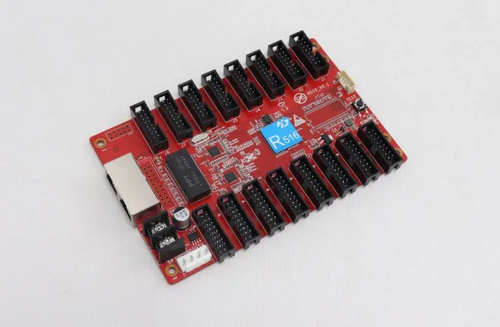

Huidu R716 is an LED display receiving card that supports synchronous control system and asynchronous control system at the same time. It does not need an adapter board. It has 16 standard HUB75E interfaces on board, which has good stability. It supports 32 sets of RGB parallel data and has a large load capacity. The maximum controllable 320,000 pixels.

Huidu HD-R716 R716 Synchronous control system and asynchronous control system

LED receiving card Parameters Table：

function item parameter
Support sending type

Support synchronous and asynchronous dual-mode play box, asynchronous sending card, synchronous sending card and two-in-one
A video processor.
Support mods Support all conventional chip modules; support mainstream PWM chip modules
scanning method Support any scan mode from static to 1/128 scan, support snapshot and empty point settings
ommunication mode  Gigabit Ethernet port
load range

Maximum load: 320,000 points
Conventional chip 160*1024, 256*640
PWM chip 320*1024, 256*1280, 512*640
Note: The actual load is related to the number of interfaces/module resolution
Multi-card connection Receiving cards can be sorted arbitrarily, nanosecond-level synchronization
grayscale Support 256~65536 levels
smart settings

Smart settings can be completed in a few simple steps, and any routing can be matched through the screen routing settings
Display unit board in line mode
test function The receiving card integrates the screen test function to test the brightness uniformity of the display screen and the display screen Module flatness
communication distance Within 80 meters of Category 5e and Category 6 network cables
interface 2 5V power ports, 2 Gigabit Ethernet ports, 16 groups of HUB75E ports
Input voltage 4.0V-5.5V
Working power 5 watts
