Nova Video Switcher D12 Seamless Switcher Real 4K 8K Video Switcher
Nova Real 4K 8K Video Switcher D12
  • Carregar imagem no visualizador da galeria, Nova Video Switcher D12 Seamless Switcher Real 4K 8K Video Switcher
  • Carregar imagem no visualizador da galeria, Nova Real 4K 8K Video Switcher D12

Novastar Video Switcher D12 Seamless Switcher Real 4K 8K Video Switcher

Fornecedor
NovaStar
Preço normal
$10,000.00 USD
Preço promocional
$10,000.00 USD
Preço normal
$19,000.00 USD
Esgotado
Preço unitário
por
Frete calculado no checkout.

Nova Original Novastar Video Switcher D12 Seamless Switcher Real 4K 8K Video Switcher

Video switching station D12

Product type: seamless switcher

Support scaling: support

Support splicing: support

Number of layers: 40

Source switching effects: supported

Custom EDID: support

Maximum output resolution: 1920× 1080@60hz

Video input interface: dvi-d ×4, HDMI1.3×4, DP1.1×4, DP1.2×1, HDMI2.0×1, 3g SDI×4

Support LOOP out: GENLOCK in-loop ×2

Control mode: computer, C3

BKG crawl: supported

Certification: no

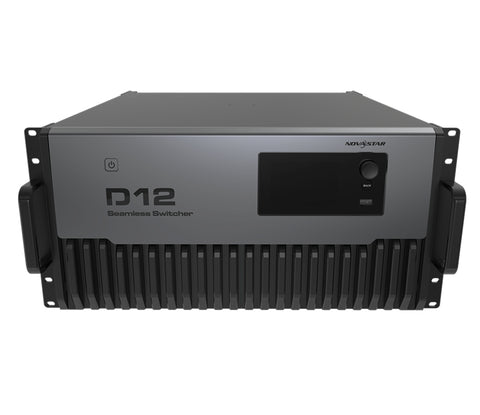

D12 is by nova technology research and development of a seamless switcher of HDCP standard, modular design can be performed, and to provide 8 input son card (32 road input interface) and 6 output sub card (24 road output interface) to select, used to configure a variety of input and output, containing DVI/DP/HDMI / 3 g SDI interface, and equipped with powerful image processing function can support 4 k hd picture transmission.

A single D12 can provide 6 output sub-cards, each with a loading capacity of up to 4K×2K@60Hz, in which the last output sub-card is 2-way back view (AUX), 1-way multi-picture pre-viewing (MVR) and 1-way echo.A single D12 supports 20 main outputs at most, with a loading capacity of up to 40KK.A Single D12 supports up to 40 single-link mixed layers.

D12 with intelligent management software Arpa and C3 console use, can be input and output Settings, screen Mosaic, screen configuration and layer Settings and other playback screen management, to achieve rich screen effects, more fully meet the needs of users.

D12 can provide 72-hour continuous and stable operation, which is widely used in stage performance, high-end auto show, business conference, TV program recording, product release and large-scale exhibition.



Adopt modularization and card design, single equipment can support 32 input and 24 output.

Support up to 40 single-link blending layers, layer position and size can be adjusted, layer borders and border width and color Settings.

Three input source EDID Settings are supported.

− preset EDID.

− custom EDID.

− advanced EDID, set the timing parameters of the video source.

The maximum output of a single output sub-card is 3840× 2166@60hz.

Each layer supports brightness, tone adjustment, saturation and layer transparency adjustment.

Supports fetching of input sources and storing them as BKG files.

Supports BKG Settings, images from local images and input source fetching.

Support 128 user scenarios, users can flexibly call and save scenarios.

PVW to LED screen on screen special effects switch, can present professional quality demonstration screen.

− Take: 13 special effects are supported and switching speeds can be set.

− t-bar: manual control of "fade in and fade out" effect switching speed.

− straight cut: switch PVW picture to LED display without special effects.

Support up to 20 output interface synchronous splicing.

Supports previewing all input sources, PVW and PGM screens.

Support 2 way back view (AUX), 1 way multi - screen preview (MVR) and 1 way echo.

Genlock video source synchronization function is supported. Any input source can be selected as the synchronization signal to achieve the synchronization of frames between screens.

Support board card working state and key chip temperature monitoring function.

Support dual power backup, improve system stability.

     Video Switcher D12 Seamless Switcher Real 4K 8K Video SwitcherNova Video Switcher D12 Seamless Switcher Real 4K 8K Video Switcher
