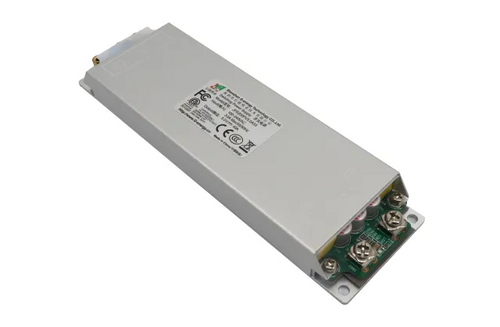

G-Energy JPS225V5.0-GS 5V40A 225W LED Display Power Supply

The power supply has the characteristics of small size, high efficiency, stable operation and high reliability. The power supply has protection functions such as input undervoltage, output current limit, output short circuit, etc.

G-Energy JPS225V5.0-GS 5V40A 225W LED Display Power Supply Specification：

total output power (W)：225

Rated input voltage (Vac)：100-240
Output voltage (Vdc)：+5.0
Output current range (A)：0-40.0
Voltage regulation accuracy：±2%
Ripple and Noise (mVp-p)：≤150
Working temperature: -30—40 (a L200mm*W145mm*H3mm aluminum plate needs to be placed outside as
Auxiliary cooling) ℃
Storage temperature: -40—80 ℃
Relative humidity: 10—50%
Heat dissipation method: natural cooling
Atmospheric pressure: 80—106 Kpa
Altitude: 2000 m
