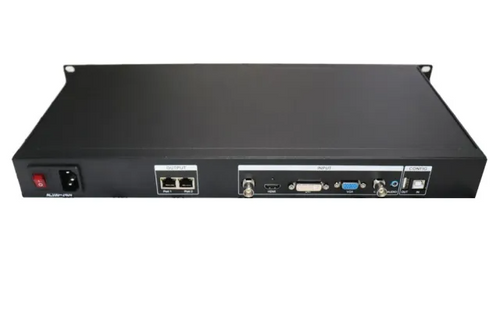

Colorlight X2m LED display professional main controller

Colorlight X2m is a professional LED display control device with powerful video signal source and processing capability. It can process up to 1920X 1080 high-definition digital signals, support various types of high-definition digital interfaces, and support arbitrary scaling and editing of video sources.

Colorlight X2m LED display professional main controller Features：

Input
●Input resolution: max 1920X 1080@60Hz.
●Signal sources: 2XHDM1.4, 1XDVI, 1XVGA, 1XCVBS.
●U-disk interface: 1 XUSB.

Output
●Loading capacity: 1.3 million pixels.
●Maximum width is 3840 pixels or maximum height is 2000 pixels.
●2 Gigabit Ethernet output ports.
●Supports Ethernet port redundancy.

Audio
●Input: 1X 3.5mm.
●Output: 1X3.5mm, support HDMI and DP audio outputs.

Function
●Supports switching, clipping and zooming.
●Supports screen offset.
●Supports screen adjustment: contrast, saturation, chroma, brightness compensation
and sharpness adjustment.
●Supports convert Limit Range to Full Range input color space.
●Supports send and read back screen correction factor, advanced stitching.
●Supports HDCP1.4.
●Supports Precise Color Management
●Supports Better Gray Level at Low Brightness, can effectively maintain the complete display of grey scale under low brightness.
●16 scene presets.
●Play back pictures and videos from U-disk.
●OSD forU-disk playback and screen adjustment (Remote controller optional).

Control
●USB port for control or cascading.
●RS232 protocol control.
●Infrared remote control (optional)
