Description

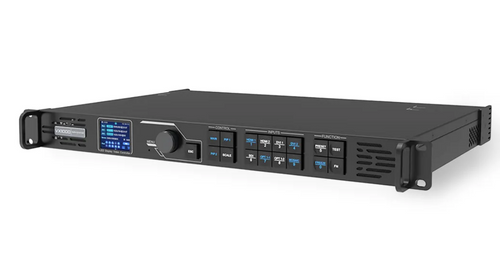

Novastar VX16s is NovaStar’s new all-in-one controller that integrates video processing, video control and LED screen configuration into one unit. Together with NovaStar’s V-Can video control software, it enables richer image mosaic effects and easier operations.
The VX16s supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.
Thanks to its powerful image processing and sending capabilities, the VX16s can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.
− 1x HDMI 2.0
− 4x SL-DVI
− Adjustable layer priorities
Novastar VX16s LED Video processor Working Diagram
Specifications
Electrical Specifications
Power connector:100–240V~, 50/60Hz, 2.1A
Power consumption:70 W
Operating Environment
Temperature:0°C to 50°C
Humidity:20% RH to 85% RH, non-condensing
Storage Environment
Temperature:–20°C to +60°C
Humidity:10% RH to 85% RH, non-condensing
Physical Specifications
Dimensions:482.6 mm x 372.5 mm x 94.6 mm
Net weight:6.22 kg
Gross weight:9.78 kg
Packing Information
Carrying case:530.0 mm x 420.0 mm x 193.0 mm
Accessories 1x European power cord / 1x US power cord / 1x UK power cord / 1x Cat5e Ethernet cable / 1x USB cable / 1x DVI cable / 1x HDMI cable / 1x Quick Start Guide / 1x Certificate of Approval
Packing box:550.0 mm x 440.0 mm x 215.0 mm
The VX16s supports a variety of video signals, Ultra HD 4K×2K@60Hz image processing and sending capabilities, as well as up to 10,400,000 pixels.
Thanks to its powerful image processing and sending capabilities, the VX16s can be widely used in applications such as stage control systems, conferences, events, exhibitions, high-end rental and fine-pitch displays.
- Industry-standard input connectors
− 1x HDMI 2.0
− 4x SL-DVI
- 16 Ethernet output ports load up to 10,400,000 pixels.
- 3 independent layers
− Adjustable layer priorities
- DVI mosaic
- Decimal frame rate supported
- 3D
- Personalized image scaling
- Image mosaic
- Easy device operation and control through VCan
- Up to 10 presets can be saved for future use.
- EDID management
- Device backup design
Novastar VX16s LED Video processor Working Diagram
Specifications
Electrical Specifications
Power connector:100–240V~, 50/60Hz, 2.1A
Power consumption:70 W
Operating Environment
Temperature:0°C to 50°C
Humidity:20% RH to 85% RH, non-condensing
Storage Environment
Temperature:–20°C to +60°C
Humidity:10% RH to 85% RH, non-condensing
Physical Specifications
Dimensions:482.6 mm x 372.5 mm x 94.6 mm
Net weight:6.22 kg
Gross weight:9.78 kg
Packing Information
Carrying case:530.0 mm x 420.0 mm x 193.0 mm
Accessories 1x European power cord / 1x US power cord / 1x UK power cord / 1x Cat5e Ethernet cable / 1x USB cable / 1x DVI cable / 1x HDMI cable / 1x Quick Start Guide / 1x Certificate of Approval
Packing box:550.0 mm x 440.0 mm x 215.0 mm
