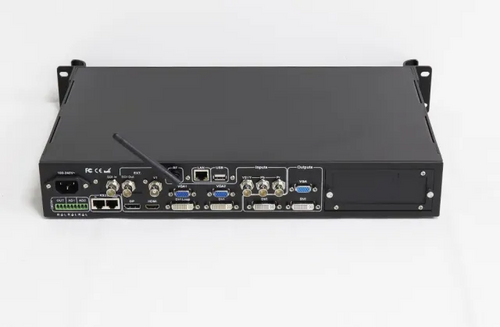

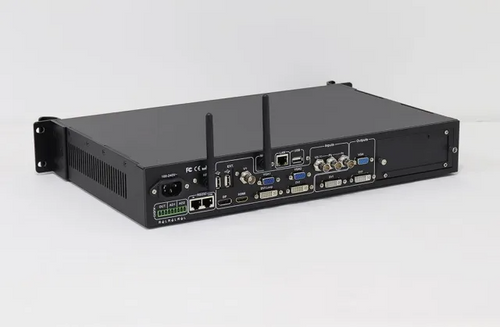

VDWALL LVP615 HD Video Processor, Basic Model of LVP615 Series

Vendor: VDWALL
Harga biasa: $450.00 USD
Harga jualan: $450.00 USD
Harga biasa: ~~$490.00 USD~~
Harga seunit: per

Penghantaran dikira semasa daftar keluar.

Kuantiti mestilah 1 atau lebih

VDWALL LVP615 HD Video Processor, Basic Model of LVP615 Series Features:

New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer

Videowall LVP615 HD Video Processor Key Features:

1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer
2. Two signal switching ways: one button to switch and pretake + Take switching
3. Seamless switching, Fade-in/Fade out & Blend switching in different input signals
4. 3 custom PIP/PBP display modes to switch by one button. Any PIP/PBP display
5. AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen
6. User define output format to reach maximal horizontal width 3840 or vertical height 1920
7. User define DVI EDID to realize pixel-to-pixel display
8. DVI loop to install multi-unit in parallel to drive indefinite LED lattice . Frame synchronous techology, no miss alignment or delay between two adjacent image output.
9. Convenient operation by panel/PC software/ infrared remote contol/Wi-Fi

Videowall LVP615 HD Video Processor Parameter:

Inputs
Nums / Type	3×CVBS 1×S-Video 1×YPbPr 3×VGA（RGBHV） 2×DIV/HDMI（1.3a with HDCP） 1×DVI-1（HDMI）
Video system	PAL / NTSC
Composite Video Scope / Impedance	1V（p_p）/ 75Ω
S-video Scope / Impedance	Y：1.0V（p_p）/ 75Ω，C：0.35V（p_p）/ 75Ω
VGA Format	PC（VESA）	≤2048x1152@60Hz
VGA Scope / Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
DVI Format	SD / HD（CEA-861）	≤1920x1080@60Hz
	PC（VESA）	≤2048x1152@60Hz
HDMI 1.3 Format( HDCP )	SD / HD（CEA-861）	≤1920x1080@60Hz
	PC（VESA）	≤2048x1152@60Hz
YPbPr Format	SD / HD（CEA-861）	≤1920x1080@60Hz
YPbPr Scope / Impedance	Y= 1.0V（p_p）/ 75Ω Pb= 0.35V（p_p）/ 75Ω Pr= 0.35V（p_p）/ 75Ω
SDI format	SDI-SMPTE 259M-C	576i @50Hz 480i @60Hz
HD-SDI 3G-SDI format	HDSDI-SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M	≤1920 x 1080@50Hz / 60Hz
AUDIO Scope / Impedance	2.0Vp-p / 10KΩ
Input Connectors	VGA：15pin D_Sub( Female ) DVI：24+1 DVI_D YPbPr: BNC×3 Composite：BNC S-VIDEO：4pin mini DIN( Female ) SDI / HD-SDI / 3G-SDI：BNC
Outputs
Nums / Type	1×VGA（RGBHV） 2×DVI
VGA / DVI Format	1024×768@60Hz / 75Hz 1280×1024@60Hz / 75Hz 1600×1200@60Hz 1920×1080@50Hz / 60Hz 1366×768@60Hz 1440×900@60Hz 2048×1152@60Hz 2304x1152@60Hz 2560x816@60Hz
VGA Scope / Impedance	R、G、B = 0.7 V（p_p）/ 75
Output Connectors	VGA OUT：15pin D_Sub( Female ) DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D
Others
Control	Panel Button / Knob / RS232
Power	100-240VAC 35W 50 / 60Hz
Operating Temp	5-40 ℃
Humidity	15-85%
Dimensions（Package）	145 mm (height) ×370mm (width) ×535mm (length)
Weight（G.W.）	5.0 Kg
Weight（N.W.）	3.2Kg
