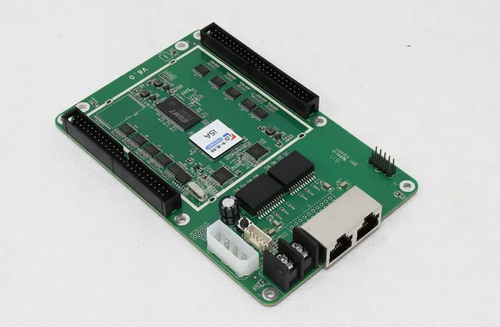

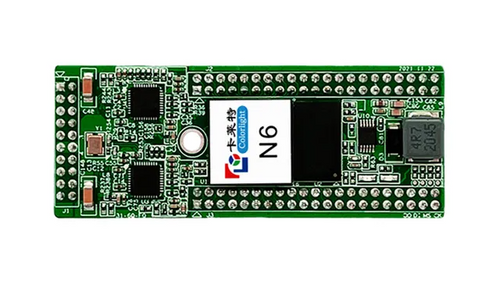

ColorLight I6 Mini LED Receiving Card high-end universal receiving card

Control system parameters

Sending device

All of Colorlight’s sending devices

Capacity

Full-color: 256*256 Pixels

Cascade Control Area of the Largest Region

65536*65536 Pixels

Network Port Exchange

Supported, arbitrary use

Gray Level

Maximum 65536 Levels

Display module compatibility

Chip Supports

Supports conventional chips, PWM chips, lighting chips and other mainstream chips

Scan Mode

Two scanning methods to support refresh rate multiplier

Scan Type

Supports static sweep to 1/32 scan

Module Specifications Support

Supports 4096 pixels within any row, any column

Cable Direction

Supports route from left to right, from right to left, from top to bottom, from bottom to top

Data Sets

32 RGB data sets

Data Folded

Supports 1~8 any discount to improve refresh rate.

Data Exchange

32 sets of data any exchange

Module Snapshot

Supports any pumping point

Compatible device and interface type

Communication Distance

UTP cable≤140M

CAT6 cable≤170M

OPTIC FIBER transmission distance unrestricted

Compatible with Transmission Equipment

Gigabit switch, fiber transceiver, optical switches

Size

67.6*32.9mm

Input Voltage

DC 3.3V~6V

Rated Current

0.6A

Rated Power

3W

Storage and Transport Temperature

-50℃~125℃

Operating Temperature

-25℃~75℃

Body Static Resistance

2KV

Weight

9.5g

Monitoring function (in conjunction with multi-function card)

Temperature Monitoring

Cabinet temperature monitoring between -25℃ ~ 75℃

1 port for each card

Humidity Monitoring

One port to monitor receiver card humidity range with 20% ~ 95%

1 port for each card

Bit Error Monitoring

Monitoring the total number of data packets and error rate to check network quality

Supply Voltage Monitoring

5 ports for supply voltage monitoring

Smoke Monitoring

One port for smoke monitoring and can work with relay to activate an alarm and turn off the display screen

1 port for each card

Full Color LCD Display Panel

Supports full color LCD display panel

Pixel level calibration

Brightness Calibration

Supported

Chromaticity Calibration

Supported

Other features

Hot Backup

Supports loop backup, double sender backup,

Shaped Screen

Supports various freeform display, spherical display, creative display, etc. through the date arbitrary offset

Program Backup

Proprietary redundant firmware backup on card no matter how to use, upgrade, send parameters, continuous functionality
