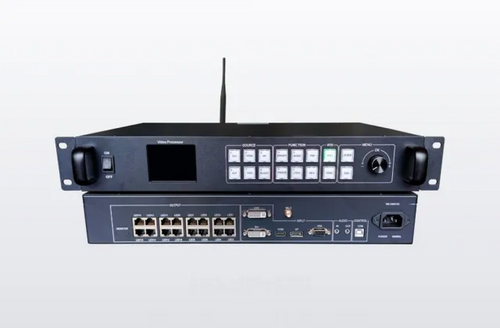

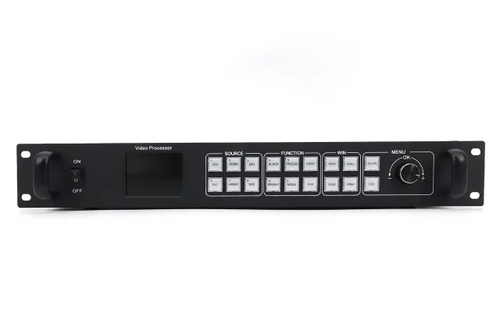

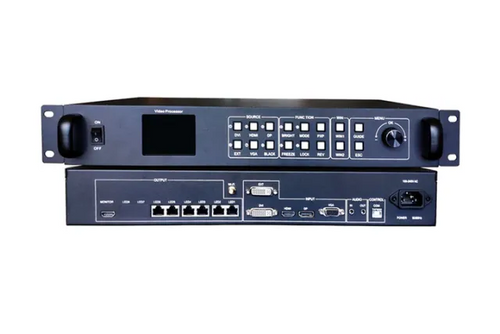

Function

Parameters

DVI Input

Interface   form: DVI-I socket

Signal   standard: DVI1.0

Resolution:   VESA standard, PC to 1920x1200, HD to 1080p

HDMI Input

Interface form: HDMI-A

Signal standard: HDMI1.3 backward   compatible

Resolution: VESA standard,≤3840×2160@60Hz

DP Input

Interface   form ：DP

Signal standard:DP1.2 Backward compatible

Resolution: VESA standard,≤3840×2160@60Hz

VGA Input

Interface form: DB15 socket

Signal standard: R, G, B, Hsync, Vsync: 0   to 1Vpp ± 3dB (0.7V Video + 0.3v Sync )

75 ohm black level: 300mV Sync-tip: 0V

Resolution: VESA standard,≤1920×1080p@60Hz

EXT Input

DVI or SDI，Default standard DVI

AUDIO IN

Input x1，3.5mm audio port

AUDIO OUT

Output x1，3.5mm audio port

Network port   Output

8-way network port output interface，connected to the acceptance card，total pixels520W，Widest 8000，Highest 3840

Each network port carries 65W pixels, and the widest single   network port is 2048 pixels and the highest is 2048 pixels.

MONITOR

Synchronous monitoring of HDMI output interface, external LCD   display，1920x1080@60Hz

Square USB   port (Type B)

Connect to the PC, debug the parameters of the sending card   and receiving card, and program upgrades through HDSet software.

Wi-Fi

Support mobile phone APP for sending card, receiving card parameter   debugging, program upgrade, etc.--- developing

Power   interface

100-240V~50/60Hz

Whole   machine power

<=75W

Weight

<=3.6kg

Size（mm）

Case size：（Length）482mm*（width）302.8mm*（hight）65.5mm

Machine case

1.5U standard industrial chassis
