Colorlight Z6 4K UHD LED Controller Box integrated Video Processor

Colorlight Z6 4K UHD LED Controller Box integrated Video Processor

Venditore
Colorlight
Prezzo di listino
$7,100.00 USD
Prezzo scontato
$7,100.00 USD
Prezzo di listino
$7,900.00 USD
Esaurito
Prezzo unitario
per
Spedizione calcolata al momento del pagamento.

Colorlight Z6 Super Controller is a professional LED display controller. As video splicer,
 processor and sender in one combined, Z6 has 4K video input capability, UHD and
HDR images processing and transmission. Z6 can be applied to high-end rental
 display and high resolution LED display perfectly.

Colorlight Z6 4K UHD LED Controller Box integrated Video Processor Overview

Z6 Super Controller is a professional LED display controller. As video splicer,

processor and sender in one combined, Z6 has 4K video input capability, UHD and

HDR images processing and transmission. Z6 can be applied to high-end rental

display and high resolution LED display perfectly.



Colorlight Z6 4K UHD LED Controller Box integrated Video Processor Features

Video input ports including SDI×2, HDMI2.0×1, DVI×4;
Support input resolution up to 4096×2160@60Hz; Input Frequency: 50~120Hz;
The input images can be spliced and zoomed according to the screen resolution;
Support PIP function, the location and size can be adjusted freely;
Support 12bit UHD video source input;
The loading capacity: 10 million pixels; Maximum Width: 16384 pixels, Maximum Height: 16384 pixels;
Support splicing and cascading among several controllers with synchronization strictly;
Support 3D display;
Support brightness and chromaticity adjustment, color gamut transformation;
Support zero latency of sending;
Support improved gray-scale at low brightness;
Support HDCP2.2;
Compatible with all receiving cards , multifunction card, optical fiber transceivers of Colorlight.

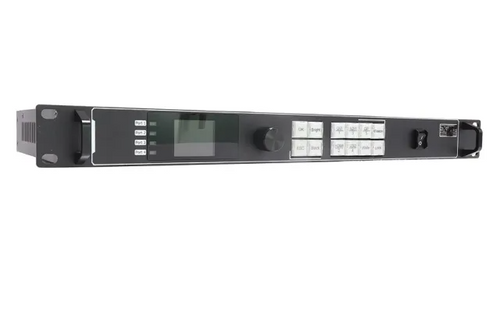

The Front Panel



NO Name Function
1 3.5-inch LCD Display operation menu and system information

2 Knob Turning knob to select or adjust
    OK:Enter key
3 Function keys ESC:Escape current operation or selection
    Bright:Brightness options
    Black:Blank screen
    Lock:Lock keys

4 Selection keys PIP:PIP switch
    Freeze:Freeze screen
    DVI/HDMI/SDI1/SDI2:video source selection





The Back Panel





Input Interface
1 SDI 4 3G-SDI inputs
2 HDMI HDMI2.0 input
3 DVI 4 DVI inputs
Output Interface
1 Gigabit Ethernet 16 Gigabit Ethernet outputs
Controlling Interface
1 100M Ethernet 2100M-Ethernet Control ports (communication with PC, or access
network), and can be used as Artnet control port
2 USB_OUT USB output, cascading with next controller
3 USB_IN USB input, which connect with PC to configure parameters
4 GENLOCK Genlock signal input ensures synchronism of display image
5 GENLOCK_LOOP Genlock synchronous signal loop output
6 3D sync interface Connect to 3D emitter
Input Interface
1 SDI 4 3G-SDI inputs
2 HDMI HDMI2.0 input
3 DVI 4 DVI inputs
Output Interface
1 Gigabit Ethernet 16 Gigabit Ethernet outputs
Controlling Interface
1 100M Ethernet 2100M-Ethernet Control ports (communication with PC, or access
network), and can be used as Artnet control port
2 USB_OUT USB output, cascading with next controller
3 USB_IN USB input, which connect with PC to configure parameters
4 GENLOCK Genlock signal input ensures synchronism of display image
5 GENLOCK_LOOP Genlock synchronous signal loop output
6 3D sync interface Connect to 3D emitter
