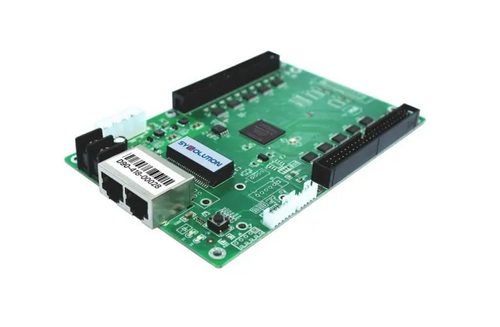

Sysolution D90-A4S LED Receiving Card

Sysolution D90-A4S 24 sets of RGB output LED Screen Univisal Receiving Card.
Sysolution D90, D90-75, or D90-A4S LED display receiving card. The D90 and D90-75 support 256×384 pixels, and the D90-A4S supports 256×256

Sysolution D90-A4S LED  Receiving Card Features:

1. 24 sets of RGB output;
2. Support 8/10BIT modes of input image gray level;
3. Output Maximum 20BIT gray level;
4. Support 96K pixels of single receiving card;
5. Wide voltage input range, input voltage range: +3.5V—+5.5V;
6. High refresh rate, high brightness and high gray level for general driver ICs;
7. Support read-back parameters from receiving card;
8. Dual backup for the network cable and support data detecting of ribbon cables;
9. Support monitoring for temperature, humidity, power voltage and fans of led screen cabinets;
10. Support to debug point by point for the brightness and chroma;
11. Support variety of driver ICs including PWM IC, point by point detecting IC and general IC;
12. Support monitoring for external environment;
13. Provide power pin for each port, support charge power from led panel.
