High performance strip video screen controller D35 (1024*64|)
Door lintel full color, taxi roof, bus AD screen controller.
ARM A9 CPU, hardware video decoding.
4GB Memory, more than 4 hours.
Do the best effect of strip full color display controller
Focus on video, animation, the effect is more dazzling.
Support hardware video decoding.
Support Wi-Fi, 4G module.
Operate by PC/APP/cloud platform.
Anytime and anywhere multiple displays management

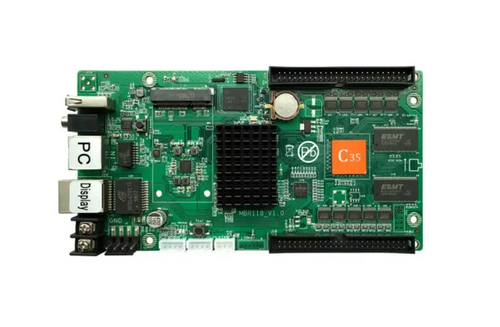

Huidu HD-D35 + Wifi Asynchronous Full color LED Display Control Card Features:
1.Power terminal, connect 5V DC power,2. RJ45 network port, and the computer network port, router or switch connected to the normal working state is orange light is always on, green light flashes,
3. USB port, connected to USB device for update programs, e.g. U-disk, Mobile hard disk, etc,

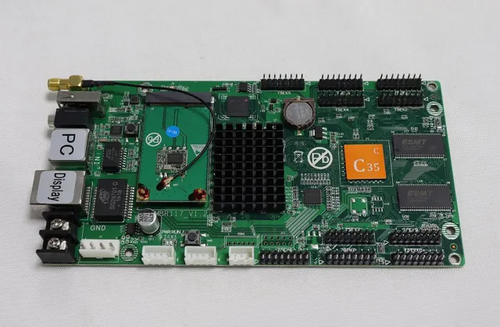

4. MINI PCIE port: connect 3G/4G module or WIFI module (optional),the rear if for insert SIM card,
5. 50 PIN HUB: Compatible with a variety of HUB boards,
6. Display light (Display), normal working state is flashing,
7. Test button: for test the brightness and contrast of the display screen;
8. Temperature Sensor port: for connect to Temperature,
9. Power light and running light: D1 is running light, D2 is power light, normal working state: power is always on, run flashes,
10. GPS port：for connect to GPS module, use for time correction and fixed position,
11. Sensor Port：for connect external sensor.
