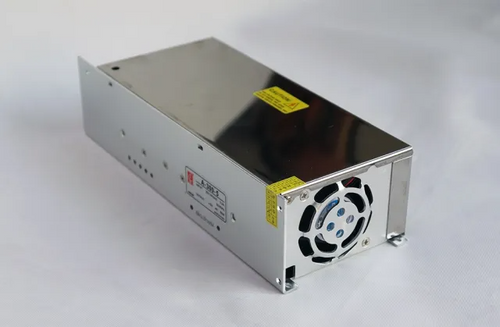

ChuangLian CZCL A-320-5 60A 300W Switching Power Supply

ChuangLian CZCL A-320-5 60A 300W Switching Power Supply CZCL 300W 5V 60A Switching Power Supply (A-320-5)

Product Features:
Low output ripple&noise
Low cost，high reliability
Forced air cooling by Built-in DC fan
Protections：Over load/Short circuit
Built-in EMI filter
CASE:812; Size:222×115×50mm
1 year warranty

Input frequency----------------------47-63Hz
AC input voltage range-------------100-120VAC or 200-240VAC
Output over load protection---------110%-150% shut off, AC recycle to re-start
AC inrush current--------------------Cold start，40A/230VAC
Line regulation（full load）-----------≤0.5%
DC adjustment range----------------±10% rated output voltage
Rise，hold up time-------------------50mS，20mS at full load（typical）
Working temperature------------------10~+40℃@ 100%，+60℃@ 60% load
Withstand voltage-------------------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min
Safety standards---------------------Design refer to GB4943，UL60950-1,EN60950-1
Storage temperature---------------- -20℃~+85℃，20%~95%RH(non condensing)
EMC standards------------------ -----Design refer to GB9254，EN55022 class A
Cooling method----------------------- Forced air cooling by Built-in DC fan
